                      首頁 > 產品中心 > 高清多格式混合矩陣 >

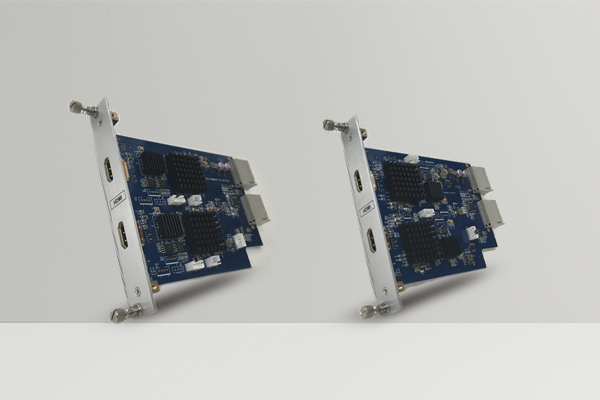

                      KD-MF系列的4K輸入輸出卡 (KD-MF series 4K input/output board)

                      產品描述:

                      該款產品符合HDMI 2.0規范,實現了真正4K無損視音頻信號的輸入輸出。做到YUV 4:4:4無色度抽樣,最高支持3840×2160@60Hz,同時支持高動態范圍和杜比全景聲等高級模式。KD-MF系列的4K輸入輸出卡可以兼容符合HDMI2.0規范的信號源和顯示設備,能夠更真實的還原視頻源的色彩圖像,提高清晰度,改善視覺體驗。


                      This product conforms to the HDMI 2.0 specification and realizes the input and output of true 4K lossless video and audio signals. It achieves YUV 4:4:4 chroma free sampling, supports up to 3840×2160@60Hz, and supports advanced modes such as high dynamic range and Dolby Panorama.

                      The KD-MF series 4K input and output boards are compatible with signal sources and display devices conforming to the HDMI2.0 specification, which can more truly restore the color image of the video source, improve the clarity and improve the visual experience.


                      支持板卡熱插板,用戶可以輕松添加或更換輸入、輸出板卡。
                      科迪4K多格式矩陣采用全新的設計,能夠滿足市場上對于4K 60Hz 4:4:4視音頻信號的傳輸需求。
                      科迪多格式矩陣始終秉持認真聆聽客戶的需求,提供最適合的解決方案。


                      Functional characteristics Support hot-plug board. Users can easily add or replace input and output boards.
                      The Kedi 4K multi-format matrix is designed to meet the market's transmission needs for 4K 60Hz 4:4:4 video and audio signals.
                      Kedi multi-format matrix always adheres to the principle of carefully listening to the needs of customers and providing the most suitable solutions.

                      技術指標


                      MI2-HDMI 4K

                      MI2-HDMI 4K

                      標準

                      符合HDMI 2.0/1.4;

                      符合HDMI 2.0/1.4;

                      HDCP標準

                      兼容HDCP 1.4 / 2.2

                      兼容HDCP 1.4 / 2.2

                      信號幅度

                      800mVp-p ± 10%

                      800mVp-p ± 10%

                      阻抗

                      差分100Ω

                      差分100Ω

                      帶寬

                      最大18Gbps

                      最大18Gbps

                      分辨率

                      最高分辨率3840×2160@60Hz ,

                      向下兼容常見分辨率;

                      最高分辨率3840×2160@60Hz ,

                      向下兼容常見分辨率;



                      Technical specifications


                      MI2-HDMI 4K

                      MI2-HDMI 4K

                      Standard

                      conform to HDMI 2.0/1.4;

                      conform to HDMI 2.0/1.4;

                      HDCP Standard

                      compatible HDCP 1.4 / 2.2

                      compatible HDCP 1.4 / 2.2

                      Signal amplitude

                      800mVp-p ± 10%

                      800mVp-p ± 10%

                      Impedance

                      Differential 100Ω

                      Differential 100Ω

                      Bandwidth

                      maximum 18Gbps

                      maximum18Gbps

                      Resolution

                      Support the highest resolution of 3840×2160@60Hz ,

                      Downward compatibility with common resolutions

                      Support the highest resolution of 3840×2160@60Hz ,Downward compatibility with common resolutions



                      訂購指南


                      型號

                      說明

                      板卡

                      KD-MI2-HDMI4K

                      雙路HDMI 輸入板卡 最高支持4K60

                      KD-MO2-HDMI4K

                      雙路HDMI 輸出板卡 最高支持4K60



                      主體機箱

                      Kd-MF4K-08

                      8路4K專用機箱

                      Kd-MF4K -16

                      16路4K專用機箱

                      Kd-MF4K -36

                      36路4K專用機箱

                      Kd-MF4K -72

                      72路4K專用機箱



                      Ordering Guide


                      Model

                      Instructions

                      Board

                      KD-MI2-HDMI4K

                      2-channel HDMI input board ,Support up to 4K60

                      KD-MO2-HDMI4K

                      2-channel HDMI output board ,Support up to 4K60



                      Main chassis

                      Kd-MF4K-08

                      8-channel 4K Dedicated chassis

                      Kd-MF4K -16

                      16-channel 4K Dedicated chassis

                      Kd-MF4K -36

                      36-channel 4K Dedicated chassis

                      Kd-MF4K -72

                      72-channel 4K Dedicated chassis
