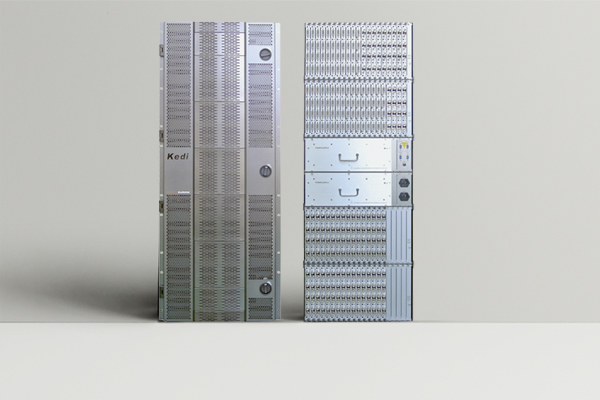

Kd-MF大型高清多格式混合矩陣 （Kd-MF large-sized HD multi-format matrix）
產品描述：
Kd-MF高清多格式混合矩陣是一款可達320×320規模，采用機架式純硬件架構，輸入卡、輸出卡、風扇、電源均為模塊化設計，輸入輸出卡熱插拔恢復時間≤2s，啟動時間≤10s?？伸`活配置輸入、輸出板卡的高性能的多信號、多格式的模塊化插板式矩陣系統。依據傳輸信號圖像無壓縮、無損失、不失真，傳輸信號過程高清實時、無延時的特點，實現真正“全高清”信號，輸出高質量的無抖動的信號圖像。
產品系列分類
Kd-MF系列大型高清多格式混合矩陣可分為Kd-MF系列144×144、288×288、320×320大規模的矩陣。其中320×320規模的多格式混合矩陣，由科迪在國內率先推出，突破了國內的多格式混合矩陣72×72的規模瓶頸，為全國規模最大的多格式混合矩陣，在秉承國際先進的設計理念的同時，更開辟了矩陣從單一的信號切換，到可同時進行超大規模信號之間切換、轉換的先河。
產品信號種類
Kd-MF系列高清多格式混合矩陣的輸入、輸出板卡可任意選擇各種信號，包括12/3G-SDI、HD-SDI、SD-SDI、HDMI、DVI、VGA、YPbPr、CVBS、HDBaseT、光纖。每一路的輸出都可自由選擇任何一路的輸入進行轉換、切換，且不會干擾其它輸出，碼率可達18Gbps、分辨率可達3840×2160@60Hz，并且向下兼容1080p@60Hz、1080p@30Hz、1080i@60Hz、720p@60Hz、1280×1024@60Hz、1024×768@60Hz、800×600@60Hz等常見信號格式。
產品工藝結構
Kd-MF系列高清多格式混合矩陣具有領先的FPGA陣列式純硬件技術架構、模塊化前后插板式結構，由科迪在國內率先應用。其中輸入、輸出板卡采用模塊化后插板式結構，可靈活配置不同的信號格式與數量；電源板卡、控制板卡采用雙電源、雙控制的冗余熱備份的模塊化前、后插板式結構，可實時在線升級、維護與擴容；獨特的風冷降噪溫控設計，大大提高了設備的可靠性和穩定性。
Product Description:
Kd-MF HD multi-format matrix is up to 320×320 scale, using rack-mount pure hardware architecture. Input board, output board, fan, power supply are of modular design. Input and output board hot swap recovery time ≤2s, startup time ≤10s. High-performance multi-signal, multi-format modular plug-in matrix system with flexible configuration of input and output boards. As the transmission signal image no compression, no loss, no distortion, the transmission signal process high-definition, real-time, no delay features, to achieve the real "full HD" signal, making it output high-quality non-jitter signal image.
Product series classification
Kd-MF series large HD multi-format matrix can be divided into Kd-MF 144×144, 288×288, 320×320 matrix. Among them, the 320×320 multi-format matrix, which was first launched by Kedi in China, broke through the scale bottleneck of the domestic multi-format matrix 72×72, and became the largest multi-format matrix in China. While adhering to the international advanced design concept, it not only supports old-fashioned single signal switch, also the first to switch ultra-large scale signals at the same time.
Product signal type
Kd-MF series HD multi-format matrix input and output boards can be arbitrarily selected from a variety of signals, including 12/3G-SDI, HD-SDI, SD-SDI, HDMI, DVI, VGA, YPbPr, CVBS, HDBaseT, fiber. The output of each way can freely choose the input of any way for conversion and switching, and will not interfere with other outputs. The bit rate can reach 18Gbps, and the resolution can reach 3840×2160@60Hz, meanwhile backward compatible with 1080p@60Hz, 1080p@30Hz, 1080i@60Hz, 720p@60Hz, 1280×1024@60Hz, 1024×768@60Hz, 800×600@60Hz and other common signal formats.
Product process structure
Kd-MF series HD multi-format matrix has the leading FPGA array pure hardware technology architecture, modular front and rear plug-in plate structure, which is first applied by Kedi in China. The input and output boards adopt modular rear insert plate structure, which can flexibly configure different signal formats and quantities. The power board and control board adopt the modular front and rear plug-in plate structure with dual power supply and dual control, which can be upgraded, maintained and expanded in real time. The unique air-cooling noise reduction temperature control design greatly improves the reliability and stability of the equipment.
